Regularization

When formulating inverse problems, a regulariser is formulated as an additional cost function which has to be minimised. Many algorithms deal with a regularizers $g$, by computing the proximal map:

\[\begin{equation} prox_g (\mathbf{x}) = \underset{\mathbf{u}}{argmin} \frac{1}{2}\vert\vert \mathbf{u}-\mathbf{x} \vert {\vert}^2 + g(\mathbf{x}). \end{equation}\]

For many regularizers, the proximal map can be computed efficiently in a closed form.

In order to implement these proximal mappings, RegularizedLeastSquares.jl defines the following type hierarchy:

abstract type AbstractRegularization
prox!(reg::AbstractRegularization, x)
norm(reg::AbstractRegularization, x)

Here prox!(reg, x) is an in-place function which computes the proximal map on the input-vector x. The function norm computes the value of the corresponding term in the inverse problem. RegularizedLeastSquares.jl provides AbstractParameterizedRegularization and AbstractProjectionRegularization as core regularization types.

Parameterized Regularization Terms

This group of regularization terms features a regularization parameter λ that is used during the prox! and normcomputations. Examples of this regulariztion group are L1, L2 or LLR (locally low rank) regularization terms.

These terms are constructed by supplying a λ and optionally term specific keyword arguments:

using RegularizedLeastSquares
l2 = L2Regularization(0.3)

L2Regularization{Float64}(0.3)

Parameterized regularization terms implement:

prox!(reg::AbstractParameterizedRegularization, x, λ)
norm(reg::AbstractParameterizedRegularization, x, λ)

where λ by default is filled with the value used during construction.

Invoking λ on a parameterized term retrieves its regularization parameter. This can be used in a solver to scale and overwrite the parameter as follows:

prox!(l2, [1.0])

1-element Vector{Float64}:
 0.625

param = λ(l2)
prox!(l2, [1.0], param*0.2)

1-element Vector{Float64}:
 0.8928571428571428

Projection Regularization Terms

This group of regularization terms implement projections, such as a positivity constraint or a projection with a given convex projection function. These are essentially proximal maps where $g(\mathbf{x})$ is the indicator function of a convex set.

positive = PositiveRegularization()
prox!(positive, [2.0, -0.2])

2-element Vector{Float64}:
 2.0
 0.0

Nested Regularization Terms

Nested regularization terms are terms that act as decorators to the core regularization terms. These terms can be nested around other terms and add functionality to a regularization term, such as scaling λ based on the provided operator or applying a transform, such as the Wavelet, to x. As an example, we can nest a L1 regularization term around a Wavelet operator.

First we generate an image and apply a wavelet operator to it:

using Wavelets, LinearOperatorCollection, ImagePhantoms, ImageGeoms
N = 256
image = shepp_logan(N, SheppLoganToft())
wop = WaveletOp(Float32, shape = size(image))

wavelet_image = reshape(wop*vec(image), size(image))
wavelet_image = log.(abs.(wavelet_image) .+ 0.01)

256×256 Matrix{Float64}:
  3.4488     1.59865    1.90295    0.372817  …  -4.60517  -4.60517  -4.60517
  2.5399     0.468954  -0.785108   1.34906      -4.60517  -4.60517  -4.60517
 -0.733675   1.94682    1.57167    1.56522      -4.60517  -4.60517  -4.60517
  2.30907    2.05713    1.25204    1.01251      -4.60517  -4.60517  -4.60517
  1.34696    1.87188    1.8159    -2.05018      -4.60517  -4.60517  -4.60517
  0.713718   1.74888    0.398654  -2.13583   …  -4.60517  -4.60517  -4.60517
 -0.692972   0.637682   0.532763   1.12284      -4.60517  -4.60517  -4.60517
  1.11718    1.58921    0.404766   0.677583     -4.60517  -4.60517  -4.60517
 -4.24067   -2.45816   -0.730035  -1.37884      -4.60517  -4.60517  -4.60517
 -0.445031   1.51269    0.754944   1.39635      -4.60517  -4.60517  -4.60517
  ⋮                                          ⋱                       ⋮
 -4.60517   -4.60517   -4.60517   -4.60517      -4.60517  -4.60517  -4.60517
 -4.60517   -4.60517   -4.60517   -4.60517      -4.60517  -4.60517  -4.60517
 -4.60517   -4.60517   -4.60517   -4.60517      -4.60517  -4.60517  -4.60517
 -4.60517   -4.60517   -4.60517   -4.60517   …  -4.60517  -4.60517  -4.60517
 -4.60517   -4.60517   -4.60517   -4.60517      -4.60517  -4.60517  -4.60517
 -4.60517   -4.60517   -4.60517   -4.60517      -4.60517  -4.60517  -4.60517
 -4.60517   -4.60517   -4.60517   -4.60517      -4.60517  -4.60517  -4.60517
 -4.60517   -4.60517   -4.60517   -4.60517      -4.60517  -4.60517  -4.60517
 -4.60517   -4.60517   -4.60517   -4.60517   …  -4.60517  -4.60517  -4.60517

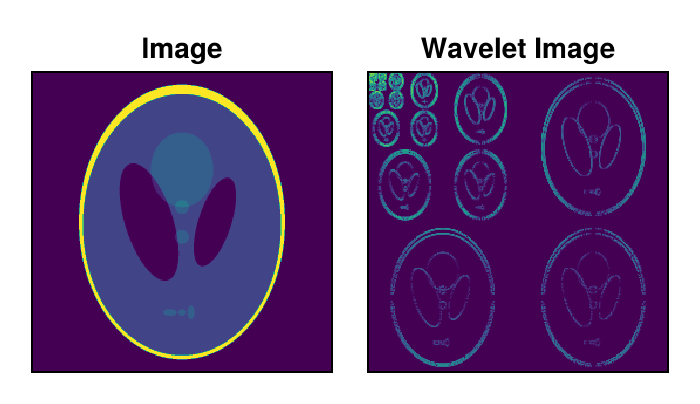

We will use CairoMakie for visualization:

using CairoMakie
function plot_image(figPos, img; title = "", width = 150, height = 150)
  ax = CairoMakie.Axis(figPos; yreversed=true, title, width, height)
  hidedecorations!(ax)
  heatmap!(ax, img)
end
fig = Figure()
plot_image(fig[1,1], image, title = "Image")
plot_image(fig[1,2], wavelet_image, title = "Wavelet Image")
resize_to_layout!(fig)
fig

To apply soft-thresholding in the wavelet domain, we can nest a L1 regularization term around the Wavelet operator:

core = L1Regularization(0.1)
reg = TransformedRegularization(core, wop);

We can then apply the proximal map to the image or the image in the wavelet domain:

img_prox_image = prox!(core, copy(vec(image)));
img_prox_wavelet = prox!(reg, copy(vec(image)));

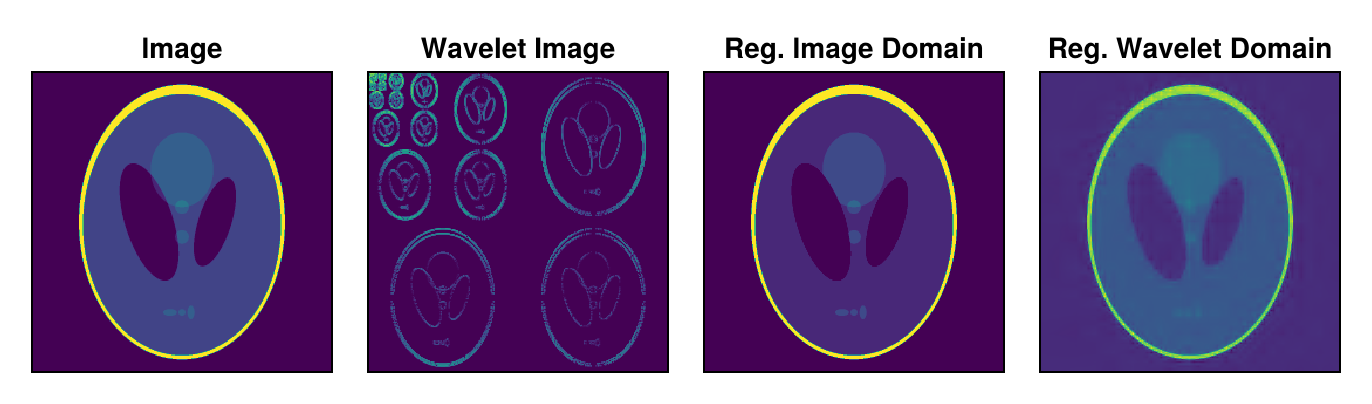

We can visualize the result:

img_prox_image = reshape(img_prox_image, size(image))
img_prox_wavelet = reshape(img_prox_wavelet, size(image))
plot_image(fig[1,3], img_prox_image, title = "Reg. Image Domain")
plot_image(fig[1,4], img_prox_wavelet, title = "Reg. Wavelet Domain")
resize_to_layout!(fig)
fig

Generally, regularization terms can be nested arbitrarly deep, adding new functionality with each layer. Each nested regularization term can return its inner regularization term. Furthermore, all regularization terms implement the iteration interface to iterate over the nesting. The innermost regularization term of a nested term must be a core regularization term and it can be returned by the sink function:

RegularizedLeastSquares.innerreg(reg) == core

true

sink(reg) == core

true

foreach(r -> println(nameof(typeof(r))), reg)

TransformedRegularization
L1Regularization
