Computed Tomography Example

In this example we will go through a simple example from the field of Computed Tomography. In addtion to RegularizedLeastSquares.jl, we will need the packages LinearOperatorCollection.jl, ImagePhantoms.jl, ImageGeoms.jl and RadonKA.jl, as well as CairoMakie.jl for visualization. We can install them the same way we did RegularizedLeastSquares.jl.

RadonKA is a package for the computation of the Radon transform and its adjoint. It is implemented with KernelAbstractions.jl and supports GPU acceleration. See the GPU acceleration how-to for more information.

Preparing the Inverse Problem

To get started, let us generate a simple phantom using the ImagePhantoms and ImageGeom packages:

using ImagePhantoms, ImageGeoms
N = 256
image = shepp_logan(N, SheppLoganToft())
size(image)
(256, 256)

This produces a 256x256 image of a Shepp-Logan phantom.

using RadonKA, LinearOperatorCollection
angles = collect(range(0, π, 256))
sinogram = Array(RadonKA.radon(image, angles))
255×256 Matrix{Float32}:
 0.0      0.0      0.0      0.0      …  0.0  0.0  0.0  0.0  0.0  0.0  0.0
 0.0      0.0      0.0      0.0         0.0  0.0  0.0  0.0  0.0  0.0  0.0
 0.0      0.0      0.0      0.0         0.0  0.0  0.0  0.0  0.0  0.0  0.0
 0.0      0.0      0.0      0.0         0.0  0.0  0.0  0.0  0.0  0.0  0.0
 0.0      0.0      0.0      0.0         0.0  0.0  0.0  0.0  0.0  0.0  0.0
 0.0      0.0      0.0      0.0      …  0.0  0.0  0.0  0.0  0.0  0.0  0.0
 0.0      0.0      0.0      0.0         0.0  0.0  0.0  0.0  0.0  0.0  0.0
 0.0      0.0      0.0      0.0         0.0  0.0  0.0  0.0  0.0  0.0  0.0
 0.0      0.0      0.0      0.0         0.0  0.0  0.0  0.0  0.0  0.0  0.0
 2.88889  2.88911  2.88977  2.89086     0.0  0.0  0.0  0.0  0.0  0.0  0.0
 ⋮                                   ⋱       ⋮                        ⋮
 0.0      0.0      0.0      0.0         0.0  0.0  0.0  0.0  0.0  0.0  0.0
 0.0      0.0      0.0      0.0         0.0  0.0  0.0  0.0  0.0  0.0  0.0
 0.0      0.0      0.0      0.0         0.0  0.0  0.0  0.0  0.0  0.0  0.0
 0.0      0.0      0.0      0.0         0.0  0.0  0.0  0.0  0.0  0.0  0.0
 0.0      0.0      0.0      0.0      …  0.0  0.0  0.0  0.0  0.0  0.0  0.0
 0.0      0.0      0.0      0.0         0.0  0.0  0.0  0.0  0.0  0.0  0.0
 0.0      0.0      0.0      0.0         0.0  0.0  0.0  0.0  0.0  0.0  0.0
 0.0      0.0      0.0      0.0         0.0  0.0  0.0  0.0  0.0  0.0  0.0
 0.0      0.0      0.0      0.0         0.0  0.0  0.0  0.0  0.0  0.0  0.0

Afterwards we build a Radon operator implementing both the forward and adjoint Radon transform

A = RadonOp(eltype(image); angles, shape = size(image));

To visualize our image we can use CairoMakie:

using CairoMakie
function plot_image(figPos, img; title = "", width = 150, height = 150)
  ax = CairoMakie.Axis(figPos[1, 1]; yreversed=true, title, width, height)
  hidedecorations!(ax)
  hm = heatmap!(ax, img)
  Colorbar(figPos[2, 1], hm, vertical = false, flipaxis = false)
end
fig = Figure()
plot_image(fig[1,1], image, title = "Image")
plot_image(fig[1,2], sinogram, title = "Sinogram")
plot_image(fig[1,3], backproject(sinogram, angles), title = "Backprojection")
resize_to_layout!(fig)
fig
Example block output

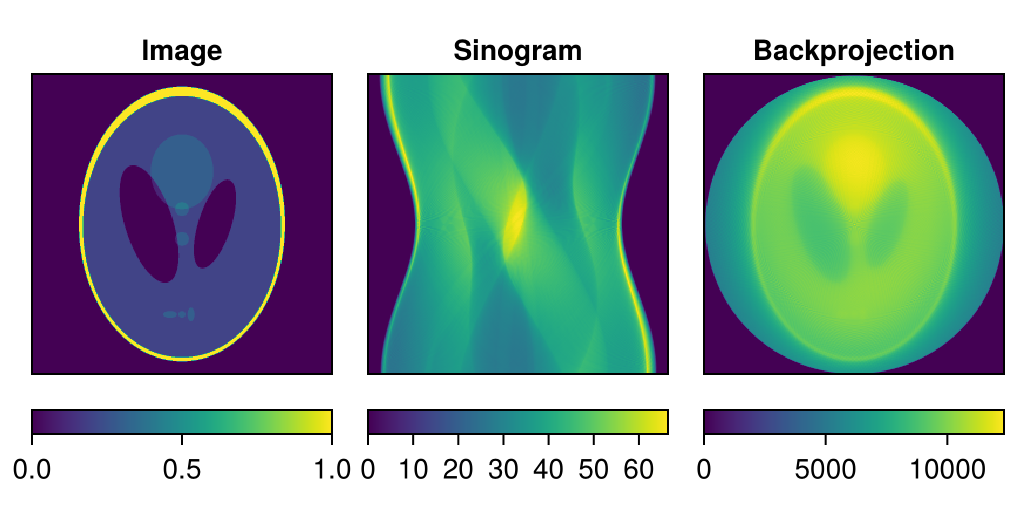

In the figure we can see our original image, the sinogram, and the backprojection of the sinogram. The goal of the inverse problem is to recover the original image from the sinogram.

Solving the Inverse Problem

To recover the image from the measurement vector, we solve the $l^2_2$-regularized least squares problem

\[\begin{equation} \underset{\mathbf{x}}{argmin} \frac{1}{2}\vert\vert \mathbf{A}\mathbf{x}-\mathbf{b} \vert\vert_2^2 + \lambda\vert\vert\mathbf{x}\vert\vert^2_2 . \end{equation}\]

For this purpose we build a $l^2_2$ with regularization parameter $λ=0.001$

using RegularizedLeastSquares
reg = L2Regularization(0.001);

To solve this inverse problem, the Conjugate Gradient Normal Residual (CGNR) algorithm can be used. This solver is based on the normal operator of the Radon operator and uses both the forward and adjoint Radon transform internally. We now build the corresponding solver

solver = createLinearSolver(CGNR, A; reg=reg, iterations=20);

and apply it to our measurement vector

img_approx = solve!(solver, vec(sinogram))
65536-element Vector{Float32}:
 0.0
 0.0
 0.0
 0.0
 0.0
 0.0
 0.0
 0.0
 0.0
 0.0
 ⋮
 0.0
 0.0
 0.0
 0.0
 0.0
 0.0
 0.0
 0.0
 0.0

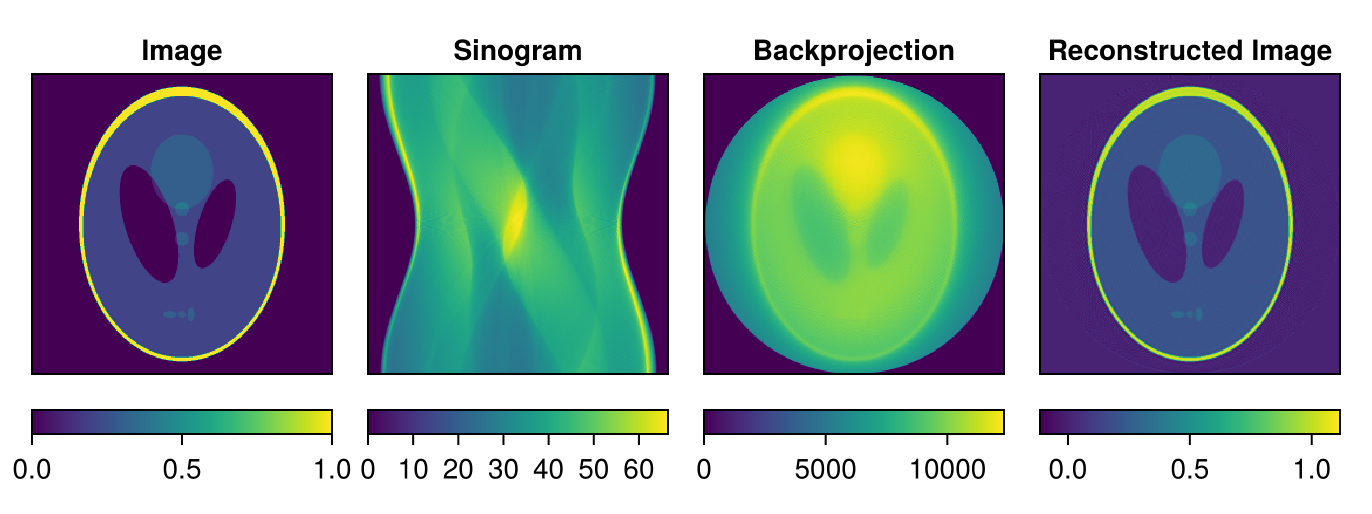

To visualize the reconstructed image, we need to reshape the result vector to the correct shape. Afterwards we can use CairoMakie again:

img_approx = reshape(img_approx,size(image));
plot_image(fig[1,4], img_approx, title = "Reconstructed Image")
resize_to_layout!(fig)
fig
Example block output
