Weighting Operator

The weighting operator implements a diagonal matrix which multiplies a vector index-wise with given weights. Such an operator is also implemented within LinearOperator.jl, however here this operator has a dedicated type on which one can dispatch:

weights = collect(range(0, 1, length = N*N))
op = WeightingOp(weights)
typeof(op)

WeightingOp{Float64, Vector{Float64}}

One can retrieve the weights from the operator

op.weights == weights

true

Note that we didn't need to specify the element type of the operator here. In this case the eltype was derived from the provided weights.

weighted_image = reshape(op * vec(image), N, N);

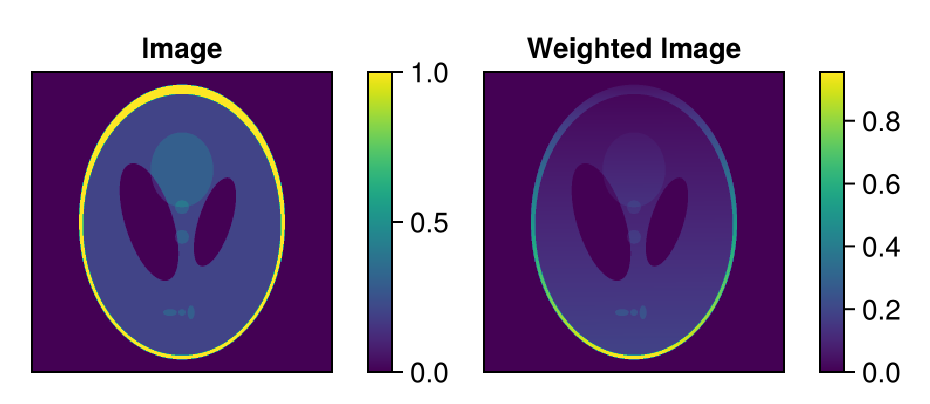

To visualize our weighted image, we will again use CairoMakie:

fig = Figure()
plot_image(fig[1,1], image, title = "Image")
plot_image(fig[1,2], weighted_image, title = "Weighted Image")
resize_to_layout!(fig)
fig

This page was generated using Literate.jl.
