This page illustrates the Gauss3 shape in the Julia package ImagePhantoms.

This page comes from a single Julia file: 34-gauss3.jl.

You can access the source code for such Julia documentation using the 'Edit on GitHub' link in the top right. You can view the corresponding notebook in nbviewer here: 34-gauss3.ipynb, or open it in binder here: 34-gauss3.ipynb.

Setup

Packages needed here.

using ImagePhantoms: Object, phantom, radon, spectrum
using ImagePhantoms: Gauss3, gauss3
import ImagePhantoms as IP
using ImageGeoms: ImageGeom, axesf
using MIRTjim: jim, prompt, mid3
using FFTW: fft, fftshift, ifftshift
using LazyGrids: ndgrid
using Unitful: mm, unit, °
using Plots: plot, plot!, scatter!, default
using Plots # gif @animate
default(markerstrokecolor=:auto)

The following line is helpful when running this file as a script; this way it will prompt user to hit a key after each figure is displayed.

isinteractive() ? jim(:prompt, true) : prompt(:draw);

Overview

A useful shape for constructing 3D digital image phantoms is the 3D gaussian, specified by its center, fwhm, angle(s) and value. All of the methods in ImagePhantoms support physical units, so we use such units throughout this example. (Using units is recommended but not required.)

Here are 3 ways to define a 3D Object{Gauss3}, using physical units.

center = (20mm, 10mm, 5mm)
width = (25mm, 35mm, 15mm)
ϕ0s = :(π/6) # symbol version for nice plot titles
ϕ0 = eval(ϕ0s)
angles = (ϕ0, 0, 0)
Object(Gauss3(), center, width, angles, 1.0f0) # top-level constructor
gauss3(20mm, 10mm, 5mm, 25mm, 35mm, 15mm, π/6, 0, 0, 1.0f0) # 9 arguments
ob = gauss3(center, width, angles, 1.0f0) # tuples (recommended use)
Object3d{Gauss3, Float32, Unitful.Quantity{Int64, 𝐋, Unitful.FreeUnits{(mm,), 𝐋, nothing}}, Float64, 3, Float64} (S, D, V, ...)
 center::NTuple{3,Unitful.Quantity{Int64, 𝐋, Unitful.FreeUnits{(mm,), 𝐋, nothing}}} (20 mm, 10 mm, 5 mm)
 width::NTuple{3,Unitful.Quantity{Int64, 𝐋, Unitful.FreeUnits{(mm,), 𝐋, nothing}}} (25 mm, 35 mm, 15 mm)
 angle::NTuple{3,Float64} (0.5235987755982988, 0.0, 0.0)
 value::Float32 1.0

Phantom image using phantom

Make a 3D digital image of it using phantom and display it. We use ImageGeoms to simplify the indexing.

deltas = (1.0mm, 1.1mm, 1.2mm)
dims = (2^8, 2^8+2, 49) # odd
ig = ImageGeom( ; dims, deltas, offsets=:dsp)
oversample = 2
img = phantom(axes(ig)..., [ob], oversample)
p1 = jim(axes(ig), img;
   title="Gauss3, rotation ϕ=$ϕ0s", xlabel="x", ylabel="y")
Example block output

The image integral should match the object volume:

volume = IP.volume(ob)
(sum(img)*prod(ig.deltas), volume)
(15829.5418359375 mm^3, 15830.547767867709 mm^3)

Show middle slices

jim(mid3(img), "Middle 3 planes")
Example block output

Spectrum using spectrum

There are two ways to examine the spectrum of this 3D image:

  • using the analytical Fourier transform of the object via spectrum
  • applying the DFT via FFT to the digital image.

Because the shape has units mm, the spectra axes have units cycles/mm. Appropriate frequency axes for DFT are provided by axesf(ig).

vscale = 1 / volume # normalize spectra by volume
spectrum_exact = spectrum(axesf(ig)..., [ob]) * vscale
sp = z -> max(log10(abs(z)/oneunit(abs(z))), -6) # log-scale for display
clim = (-6, 0) # colorbar limit for display
(xlabel, ylabel) = ("ν₁", "ν₂")
p2 = jim(axesf(ig), sp.(spectrum_exact), "log10|Spectrum|"; clim, xlabel, ylabel)
Example block output

Sadly fft cannot handle units currently, so this function is a work-around:

function myfft(x)
    u = unit(eltype(x))
    return fftshift(fft(ifftshift(x) / u)) * u
end

spectrum_fft = myfft(img) * (prod(ig.deltas) * vscale)
p3 = jim(axesf(ig), sp.(spectrum_fft), "log10|DFT|"; clim, xlabel, ylabel)
Example block output

Compare the DFT and analytical spectra to validate the code

errf = maximum(abs, spectrum_exact - spectrum_fft) / maximum(abs, spectrum_exact)
@assert errf < 1e-3
p4 = jim(axesf(ig), 1e3*abs.(spectrum_fft - spectrum_exact);
   title="|Difference| × 10³", xlabel, ylabel)
jim(p1, p4, p2, p3)
Example block output

Parallel-beam projections using radon

Compute 2D projection views of the object using radon. Validate it using the projection-slice theorem aka Fourier-slice theorem.

pg = ImageGeom((2^8,2^7), (0.6mm,1.0mm), (0.5,0.5)) # projection sampling
ϕs, θs = (:(π/2), ϕ0s), (:(π/7), :(0))
ϕ, θ = [eval.(ϕs)...], [eval.(θs)...]
proj2 = [radon(axes(pg)..., ϕ[i], θ[i], [ob]) for i in 1:2] # 2 projections
smax = ob.value * IP.fwhm2spread(maximum(ob.width))
p5 = jim(axes(pg)..., proj2; xlabel="u", ylabel="v", title =
    "Projections at (ϕ,θ) = ($(ϕs[1]), $(θs[1])) and ($(ϕs[2]), $(θs[2]))")
Example block output

Because the object has maximum FWHM of 35mm, and one of the two views above was along the corresponding axis, the maximum projection value is about fwhm2spread(35mm) = 35mm * sqrt(π / log(16)) ≈ 37.25mm.

maxes = round.((smax, maximum.(proj2)...) ./ 1mm; digits=2)
(37.26, 23.94, 37.25)

The integral of each projection should match the object volume:

vols = round.(((p -> sum(p)*prod(pg.deltas)).(proj2)..., volume) ./ 1mm^3; digits=2)
(15830.53, 15830.55, 15830.55)

Look at a set of projections as the views orbit around the object.

ϕd = 0:6:360
ϕs = deg2rad.(ϕd)
θs = :(π/7)
θ = eval(θs)
projs = radon(axes(pg)..., ϕs, [θ], [ob]) # many projection views

if isinteractive()
    jim(axes(pg)..., projs; title="projection views $(ϕd)")
else

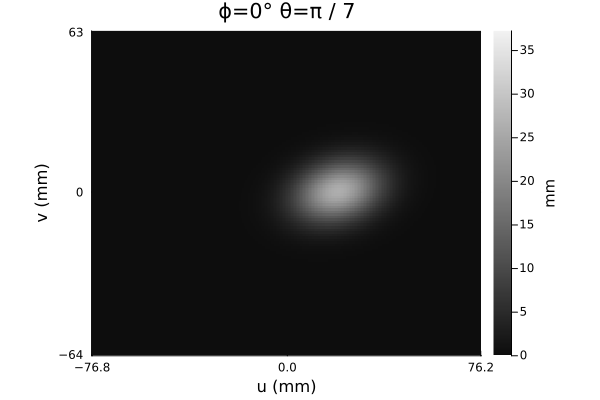

    anim = @animate for ip in 1:length(ϕd)
        jim(axes(pg), projs[:,:,ip,1]; xlabel="u", ylabel="v", prompt=false,
            title="ϕ=$(ϕd[ip])° θ=$θs", clim = (0,1) .* smax)
    end
    gif(anim, "gauss3.gif", fps = 6)
end
Example block output

The above sampling generated a parallel-beam projection, but one could make a cone-beam projection by sampling (u, v, ϕ, θ) appropriately. See Sinograms.jl.

Fourier-slice theorem illustration

Pick one particular view and compare its FFT to a slice through the 3D object spectrum.

ϕs, θs = :(π/3), :(π/7)
ϕ, θ = eval.((ϕs, θs))
proj = radon(axes(pg)..., ϕ, θ, [ob])
p6 = jim(axes(pg), proj; xlabel="u", ylabel="v", prompt=false,
    title = "Projection at (ϕ,θ) = ($ϕs, $θs)")

e1 = (cos(ϕ), sin(ϕ), 0)
e3 = (sin(ϕ)*sin(θ), -cos(ϕ)*sin(θ), cos(θ))
fu, fv = ndgrid(axesf(pg)...)
ff = vec(fu) * [e1...]' + vec(fv) * [e3...]' # fx,fy,fz for Fourier-slice theorem
spectrum_slice = spectrum(ob).(ff[:,1], ff[:,2], ff[:,3]) * vscale
spectrum_slice = reshape(spectrum_slice, pg.dims)
clim = (-6, 0) # colorbar limit for display
(xlabel, ylabel) = ("νᵤ", "νᵥ")
p7 = jim(axesf(pg), sp.(spectrum_slice); prompt=false,
    title = "log10|Spectrum Slice|", clim, xlabel, ylabel)
proj_fft = myfft(proj) * prod(pg.deltas) * vscale
p8 = jim(axesf(pg), sp.(proj_fft); prompt=false,
     title = "log10|FFT Spectrum|", clim, xlabel, ylabel)

errs = maximum(abs, spectrum_slice - proj_fft) / maximum(abs, spectrum_slice)
@assert errs < 1e-5
p9 = jim(axesf(pg), 1e6*abs.(proj_fft - spectrum_slice);
    title="|Difference| × 10⁶", xlabel, ylabel, prompt=false)
jim(p6, p7, p8, p9)
Example block output

The good agreement between the 2D slice through the 3D analytical spectrum and the FFT of the 2D projection view validates that phantom, radon, and spectrum are all self consistent for this shape.
