Plan Storage and Usability

When working with serialized RecoPlans, managing modules and plan files becomes important. This guide shows how to set up a plan storage system for automatic RecoPlan and module discovery. Ideally, this is implemented in a reconstruction package and abstracted away from the users.

Basic Storage System

Here's a simple system for managing plan directories and modules. We first track plans and modules for our reconstruction:

const recoPlanPaths = AbstractString[]
const recoPlanModules = Module[@__MODULE__, AbstractImageReconstruction, OurRadonReco, RegularizedLeastSquares]
4-element Vector{Module}:
 Main
 AbstractImageReconstruction
 Main.OurRadonReco
 RegularizedLeastSquares

Then we define methods to extend our storage:

addRecoPlanPath(path) = !(path in recoPlanPaths) ? pushfirst!(recoPlanPaths, path) : nothing
addRecoPlanModule(mod) = !(mod in recoPlanModules) ? push!(recoPlanModules, mod) : nothing
getRecoPlanModules() = recoPlanModules

function getRadonPlanList(; full = false)
  result = String[]
  for path in recoPlanPaths
    if isdir(path)
      plans = filter(a -> contains(a, ".toml"), readdir(path, join = full))
      push!(result, plans...)
    end
  end
  return result
end
getRadonPlanList (generic function with 1 method)

We then define a helper function that lets us find a plan if a user provides the name:

function planpath(name::AbstractString)
  for dir in recoPlanPaths
    filename = joinpath(dir, "$(name).toml")
    isfile(filename) && return filename
  end
  isfile(name) && return name
  throw(ArgumentError("Could not find plan: $name"))
end
planpath (generic function with 1 method)

Radon-Specific Storage System

Once we define this tooling in our Radon package, we can provide default reconstruction algorithms. Let's assume we have a subfolder called config for stored RecoPlans:

const DEFAULT_PLANS_PATH = joinpath(@__DIR__, "config")
if !isdir(DEFAULT_PLANS_PATH)
  mkdir(DEFAULT_PLANS_PATH)
end
"/home/runner/work/AbstractImageReconstruction.jl/AbstractImageReconstruction.jl/docs/build/generated/howto/config"

We can add this path when loading our Radon package:

addRecoPlanPath(DEFAULT_PLANS_PATH)
1-element Vector{AbstractString}:
 "/home/runner/work/AbstractImage" ⋯ 52 bytes ⋯ "s/build/generated/howto/config"

Then we define helper functions that either load a plan directly from a file or search for a stored one:

function loadRadonPlan(planfile::AbstractString, modules; kwargs...)
  return open(planfile, "r") do io
    return loadRadonPlan(io, modules; kwargs...)
  end
end

function loadRadonPlan(io, modules; kwargs...)
  plan = loadPlan(io, modules)
  setAll!(plan; kwargs...)
  return plan
end

function RadonRecoPlan(value::String, modules = getRecoPlanModules(); kwargs...)
  if isfile(value) && endswith(value, ".toml")
    return loadRadonPlan(value, modules; kwargs...)
  else
    return loadRadonPlan(planpath(value), modules; kwargs...)
  end
end
RadonRecoPlan (generic function with 2 methods)

We can also provide a helper reconstruction function:

function AbstractImageReconstruction.reconstruct(name::String, sino; modules = getRecoPlanModules(), kwargs...)
  plan = RadonRecoPlan(name, modules; kwargs...)
  return reconstruct(build(plan), sino)
end

Let's now populate our storage with some reconstructions. First, a simple direct reconstruction:

plan = RecoPlan(DirectRadonAlgorithm; parameter =
  RecoPlan(DirectRadonParameters;
    pre = RecoPlan(RadonPreprocessingParameters),
    reco = RecoPlan(RadonBackprojectionParameters)
  )
)
savePlan(joinpath(DEFAULT_PLANS_PATH, "direct.toml"), plan)

Then, a filtered back projection:

plan = RecoPlan(DirectRadonAlgorithm; parameter =
  RecoPlan(DirectRadonParameters;
    pre = RecoPlan(RadonPreprocessingParameters),
    reco = RecoPlan(RadonFilteredBackprojectionParameters)
  )
)
savePlan(joinpath(DEFAULT_PLANS_PATH, "filtered.toml"), plan)

Lastly, an iterative reconstruction:

plan = RecoPlan(IterativeRadonAlgorithm; parameter =
  RecoPlan(IterativeRadonParameters;
    pre = RecoPlan(RadonPreprocessingParameters),
    reco = RecoPlan(IterativeRadonReconstructionParameters)
  )
)
savePlan(joinpath(DEFAULT_PLANS_PATH, "iterative.toml"), plan)

Usage Example

With this system, using our reconstructions becomes much simpler. Users only need to load our reconstruction package OurRadonReco:

using OurRadonReco

Then they can list available plans:

getRadonPlanList()
3-element Vector{String}:
 "direct.toml"
 "filtered.toml"
 "iterative.toml"

Load a plan by name (modules are automatically used):

plan = RadonRecoPlan("filtered")
RecoPlan{Main.OurRadonReco.DirectRadonAlgorithm}
└─ parameter::RecoPlan{Main.OurRadonReco.DirectRadonParameters}
   ├─ reco::RecoPlan{Main.OurRadonReco.RadonFilteredBackprojectionParameters}
   │  ├─ filter
   │  └─ angles
   └─ pre::RecoPlan{Main.OurRadonReco.RadonPreprocessingParameters}
      ├─ numAverages
      └─ frames

Or set up reconstructions using the plans directly or our helper method:

params = Dict{Symbol, Any}()
params[:frames] = collect(1:3)
params[:eltype] = eltype(sinograms)
params[:shape] = size(images)[1:3]
params[:angles] = angles
params[:iterations] = 20
params[:reg] = [L2Regularization(0.001), PositiveRegularization()]
params[:solver] = CGNR
image_direct = reconstruct("direct", sinograms; params...)
image_filtered = reconstruct("filtered", sinograms; params...)
image_iter = reconstruct("iterative", sinograms; params...)

fig = Figure()
for i = 1:3
  plot_image(fig[i,1], reverse(images[:, :, 24, i]), title = i == 1 ? "Phantom" : "")
  plot_image(fig[i,2], sinograms[:, :, 24, i], title = i == 1 ? "Sinogram" : "")
  plot_image(fig[i,3], reverse(image_direct[:, :, 24, i]), title = i == 1 ? "BP" : "")
  plot_image(fig[i,4], reverse(image_filtered[:, :, 24, i]), title = i == 1 ? "Filtered BP" : "")
  plot_image(fig[i,5], reverse(image_iter[:, :, 24, i]), title = i == 1 ? "Iterative" : "")
end
resize_to_layout!(fig)
fig

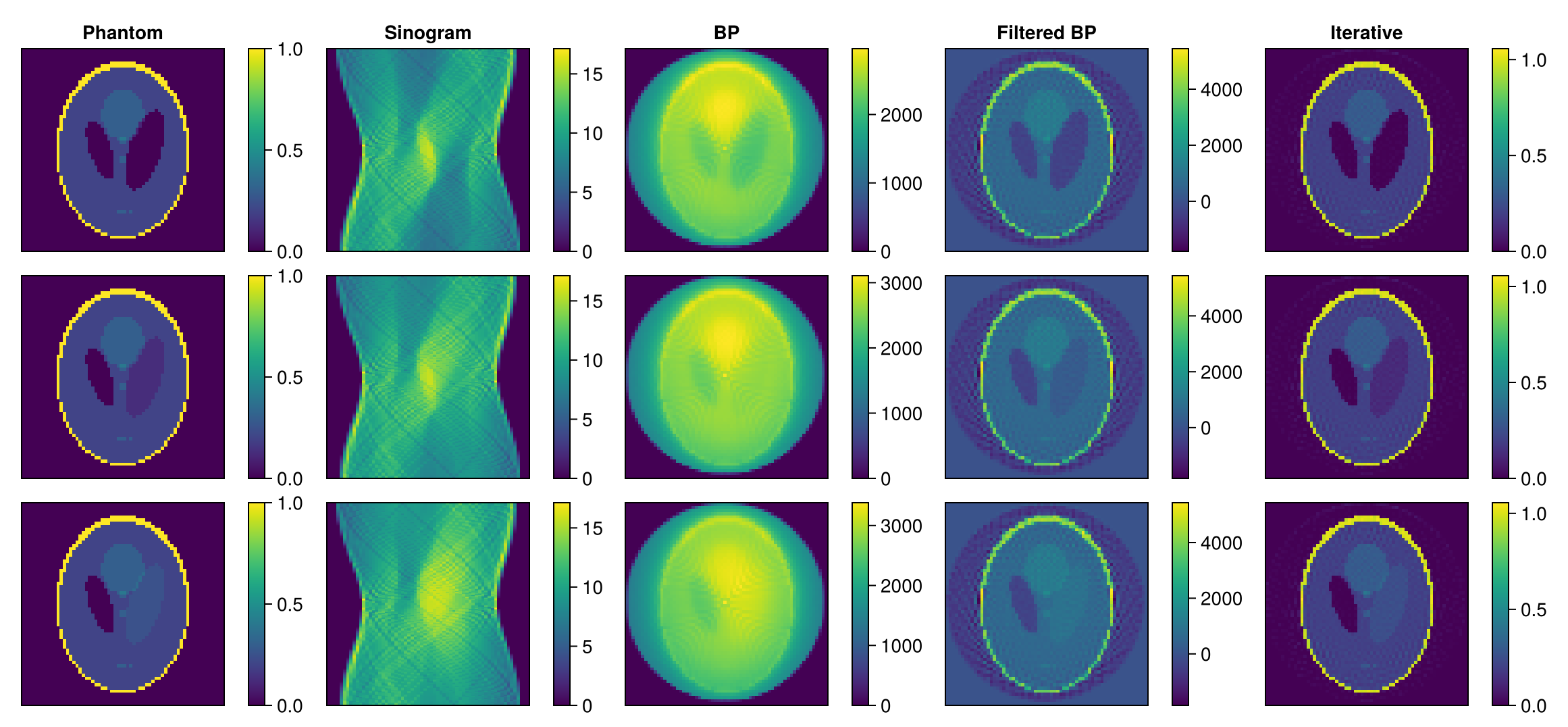

Example block output

If users want to extend our package with new algorithms, they can write new parameters or algorithms and add them to our tracking setup. Similarly, other packages built on ours can add themselves during loading and make their plans available through our base interface. We could also define package extensions which trigger on GPU packages being loaded and add GPU-specific parameters and/or track the GPU modules.

Some further steps to flesh out such a system:

  • Add caching of RecoPlans to take advantage of cached
  • Keyword arguments can change plan structures and should be applied in a specific order
  • Graphical interface to allow users full control over nested algorithms
  • The reconstruct helper function currently commits type piracy since neither Strings, Arrays, nor the function itself are defined in OurRadonReco

This page was generated using Literate.jl.
